INTAKE TUBE TO GROW INTO

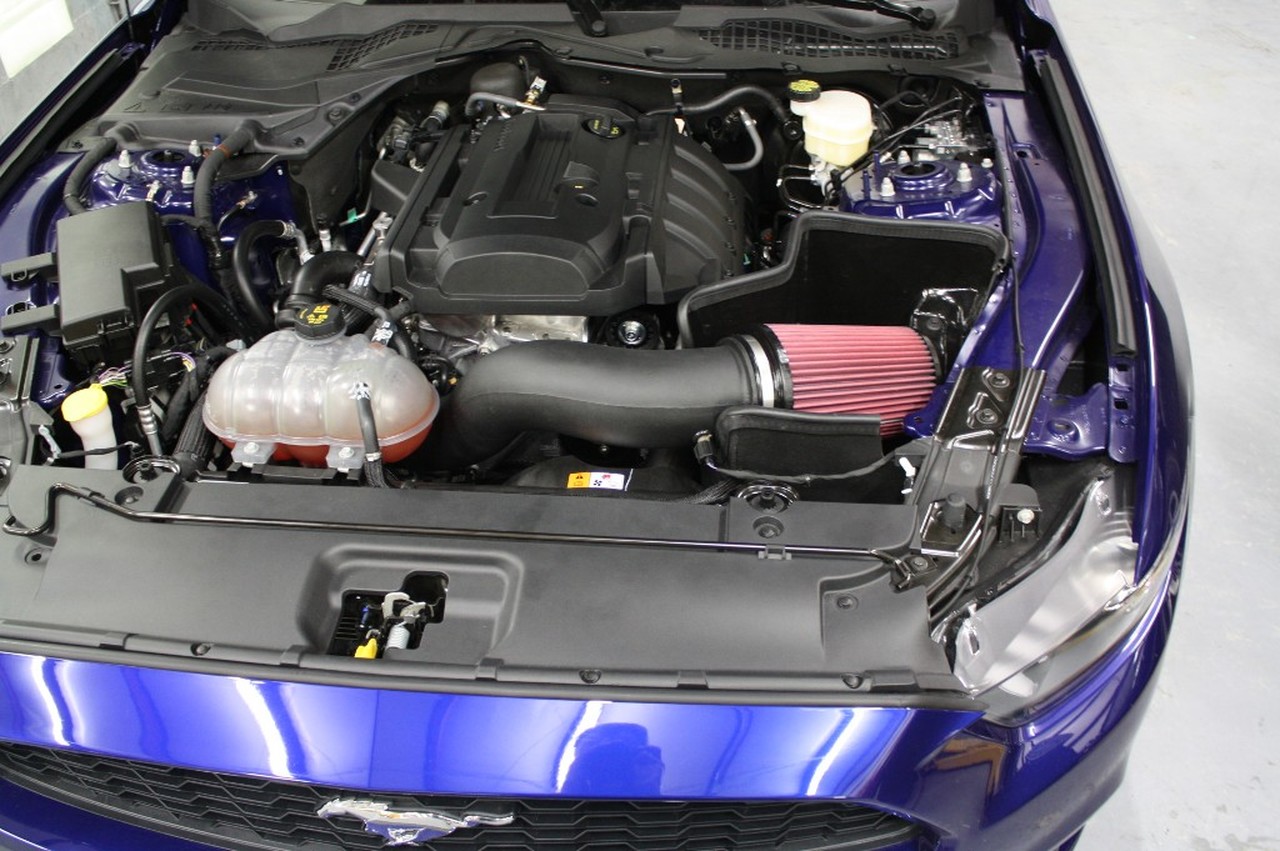

JLT’s 2015-18 Eco Boost Cold Air Intake is better than ever. Fully computer designed to optimize space and for best fit and finish. Large 5″ filter inlet with radiused end for tons of smooth air flow.
Turbo end is 2.25″ to meet up with the factory turbo, but then it steps up to 4″ with another “barb” in the tube. So when you add a bigger turbo all you have to do is cut the end of the tube and add a larger coupler to fit up to a 4″ Turbo inlet!!
HEAT SHIELD
Fully Roto molded heat shield and included fresh air duct to the grille designed to keep inlet air temps as cool as possible.
AIR FILTER
We use only the best air filters made by S&B to our specifications. We love S&B’s tapered flange design and Powerstack filtered ends. With a huge 5” opening on the tube we needed a huge filter. The result is a monster 5×7” filter with built in screen to straighten airflow.
GAINS AND TESTING
15-20+ RWHP has been seen with this JLT Intake with more testing coming soon.
TUNING
NO TUNING NEEDED, but tunes help the Eco Boost big time.
EASY INSTALL
The design, detailed instructions, and online video helps make this an easy install (see Instructions & Video tabs to download / view).
KIT INCLUDES:
• JLT Plastic Intake Tube
• Silicone Coupler
• 5×7 S&B Powerstack Air Filter
• Heat Shield with duct
• HD Clamps & all needed hardware
• BOV/Bypass valve cap in case you go with an aftermarket Blow off valve in the future.
AIR FILTER OPTIONS – OIL OR DRY
We use only the best air filters made by S&B to our specifications.
For years we only used oiled filters, but dry filter technology has been proven and is now a popular option.
Should I choose a Dry Disposable or Cotton Oiled Filter?
Since you are not sacrificing performance with either choice, the decision comes down to would you rather throw away the filter or clean it.
Dry: Comparable airflow to oiled cotton filters with the same great protection.
Last for up to 30,000 miles of highway driving. Extend the life of the filter using compressed air.
Oil: Oiled filters can last forever as long as you properly clean and re-oil it.
See picture of filters below. Oil filters are available in red or blue and Dry filters are white.
MAINTENANCE
To properly clean your oil filter, we recommend the S&B Precision II Cleaning & Oiling Kit.
*TIP* by purchasing a 2nd air filter you can simply swap filters when it’s time to clean it and not be rushed. Clean the first filter and it’s ready when it’s time to change again.
JLT Pre-Filters are now available for most intake kits we carry, these filters are made for us by Outerwears, these prefilters are water repellent. They will increase your filter life and cut down on your cleaning intervals! For more information check the product page here JLT Air Filter PRE FILTER
*This product is NOT CARB (California Air Resource Board) Exempt. It is not for legal sale or use in the state of CA or any other states adopting CA emission standards and require a CA Executive Order (EO) number. Any orders placed for this item with a CA ship to address will be cancelled.
