Supported EFI packages include Dominator, HP, Terminator & TerminatorX Holley EFI Systems as well as Big Stuff EFI systems including Gen3 and Gen4 ECU’s.

Contact us TODAY to get your custom EFI system ordered, installed and/or tuned!

Here is some information about each companies most popular EFI system….

About the Holley Dominator ECU:

Dominator® EFI Vehicle Management Systems are intended for non-emissions street and racing engine applications. In addition to the transmission control, drive by wire, and dual wideband oxygen sensor options, Dominator® systems have nearly unlimited capabilities to control any power adder, input, or output you can throw at them. Need to run a turbocharged, nitrous injected 8 cylinder running water-methanol injection? No problem with Dominator® EFI. How about control a 4L60E transmission as well as the fuel and spark on your street rod? No problem. There are also enough inputs and outputs to allow the Dominator® VMSs to serve as their own data acquisition and control module. The Dominator® VMS will eliminate the need for additional controllers as they are all contained in this one unit. The only thing limiting the Dominator® Vehicle Management System is your imagination!

Works with 4, 6, 8 and 10 cylinder engines
Ignition Plug and Play with GM LS engines (non-VVT), GM HEI, Ford TFI, Coyote (non-VVT), 4.6/5.4 Mod Motor, Late Model HEMI and magnetic and hall effect trigger. Custom settings can be configured to allow for use with many other applications
Integrated electronic transmission control – Operates GM 4L60E and 4L80E transmissions, Ford AODE and 4R70W with more to come in the future
Integrated drive by wire throttle body control – Can control two drive by wire throttle bodies. Compatible with a number of DBW throttle bodies including GM, Chrysler, Ford, and Nissan
Integrated dual channel wide band oxygen sensor controls – For monitoring both engine banks (NTK or Bosch sensors)
Extensive amount of inputs and outputs allow for limitless combination of options. Allows for unit to be used as a complete data acquisition system as well
Twelve sequentially driven 8:2 peak and hold injector drivers, capable of driving up to 24 low or high impedance injectors as a standard feature. Multiple staged injector strategies
Twelve channel Distributorless Ignition (DIS) outputs capable of directly driving “Smart” ignition coils or Holley DIS coils. Will drive 2 wire coils with the addition of PN 554-112 high current coil driver module
Speed density, Alpha-N, Alpha-N Combination, and VE fueling strategies – Tuner has the option to select from a variety of load sensing strategies to meet their engine requirements or tuning preference
Individual cylinder fuel and spark control allows you to unlock your engine’s potential
Unique lb/hr based fueling strategy greatly simplifies and commonizes tuning
Advanced idle, closed loop, and enrichment strategies allow for very stable engine operation
1-7 Bar MAP sensor capability – For naturally aspirated or boosted applications
Fuel Map and Learn Function Smoothing – Helps to smooth rough areas of the maps
Configurable User Password Protection – “Lock” your tune to prevent tampering
Self-tuning fuel table strategy greatly simplifies tuning process – The more you drive it, the more it learns
“Quick Start” strategies – For faster engine starting
Allows for use of common OEM sensors as well as custom sensor calibration input
Two channel knock control sensor inputs for both one or two wire knock sensors
Dedicated fuel and oil pressure inputs
Controls both stepper and PWM Idle Air Control (IAC) motors
3 Rev Limiters – Choose between 4 options for each: Fuel Only, Spark Only, Fuel and Spark, or Soft
Traction Control – Allows power reduction via timing, nitrous percentage or boost (Requires Davis Technologies Holley Module)
Store and select between four calibrations with Multi Map Selector (Part Number 558-407)
HARDWARE
ECU is fully potted and can be mounted in the engine compartment or interior – See images for dimensions
Sealed automotive and marine grade connectors
Optional Digital Displays – 7″ Digital Dash (PN 553-106) / 3.5″ Touch Screen LCD (PN 553-108)
12.3″ Pro Dash (PN 553-111) and 7″ Race Dash (PN 553-106) features full gauge layout customization, and nearly limitless tuning options.
DATA VISUALIZATION TOOLS
Data Logger –Analyze and export your data with sophisticated, but user friendly tools – Internal logger has 4 GB of memory
Strip Chart – For real-time data viewing
Fully Configurable lap top Gauge Panel – Life-like gauge cluster on your laptop screen
Racepak Integration Module Available.
Data logger – Smoothing, multiple graph view, pre-defined notes fields and more..
8 STAGE NITROUS OXIDE CONTROL
Fully featured nitrous control eliminates the need for a separate nitrous controller device
Can be configured “Wet” or “Dry” with closed loop feedback
Progressive control based on time, RPM, or boost, requires part # 554-111
Lean or rich safety cutoff
Full timing retard/control configurability per stage based on RPM or time
INTEGRATED WATER/METHANOL INJECTION CONTROL
Uses Holley water/meth solenoids specially designed and calibrated for use with this EFI system to allow the user to enter water/meth flow as a percentage of fuel injector flow for water/meth tuning precision unmatched in the industry
Allows for two nozzles to be controlled
Nozzles available from 400 to 1000 cc/min
Complete control of pump activation, and low system safety features
TURBOCHARGER BOOST CONTROL
Fully featured boost control capability eliminates the need for a separate boost control device
Can be configured to control boost based on time, gear, speed, and manual inputs
Gear based boost control configurable by several different methods
“Boost Builder” functions offer the ability to assist building boost on the starting line by altering ignition timing, fueling, as well as nitrous oxide activation. Can also be used as an anti-lag function
INPUTS AND OUTPUTS
13 – “Multi-Inputs” – Can be configured as a 0-5V sensor input, 0-20v sensor input, thermistor temperature input, or high or low voltage input
30 – 0-5V Sensor Inputs – Configures any 0-5V sensor as well as some can be used as switched high or low inputs
4 – Speed Inputs – Can be configured as a digital (square wave) input or an inductive input
20 – 12v PWM Outputs – Can be configured as PWM or switched 12V outputs. Rated at 2A maximum
16 – Ground PWM Outputs – Can be configured as PWM or switched ground outputs. Rated at 2A maximum
All inputs and outputs are programmed using innovative new “Pin Mapping” strategy that allows inputs and outputs to be pinned as desired by the user, allowing for inputs and outputs to not be “wasted” by non-used dedicated functions
Configurable for: dual cooling fans (including brushless fans that require PWM signal), dual fuel pumps, AC inputs, basic TCC lockup, and multiple timing retard inputs
User programmable caution and warning outputs for all sensors
ADVANCED TUNING ICF
Fully User Configurable tables, 1D, 2D, 1D Per Gear, 2D Per Gear
Tables allow for virtually unlimited dimensional tuning of fuel, spark, boost, nitrous and more
User can modify fuel, timing, boost, nitrous, individual cylinder, ignition dwell, DBW, and more
Parameters can be adjusted based on any input, sensor, or time.

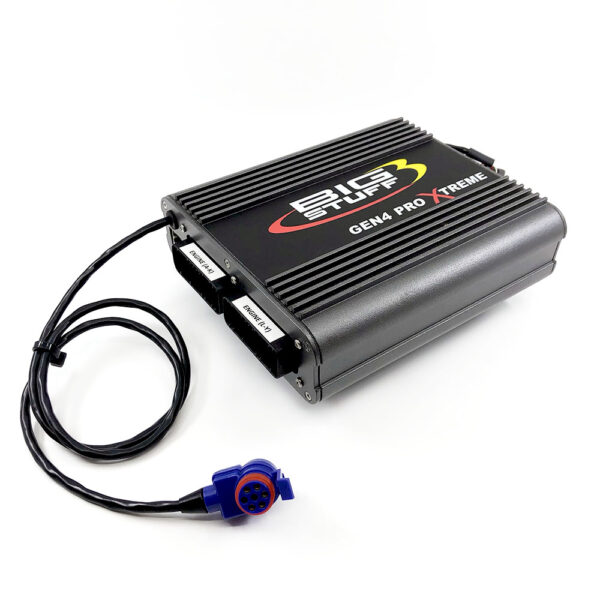

About the BigStuff Gen4 ECU:

BigStuff is a Southeast Michigan-based company focused on the design, manufacture, and marketing of state-of-the-art electronic engine and power train controllers for the performance aftermarket. Bigstuff is proud to be one of the last USA based ECU systems in the aftermarket. We utilize only USA based manufacturers from our ECU’s, Injector Drivers, Dashes and Wire Harnesses. We will whenever possible keep our American companies working rather than send our money overseas.

Our current GEN4 offering has hit the aftermarket and we are getting rave reviews from our customers. The GEN4 ECU started as a blank slate on how we could best serve our current GEN3 ECU customers while also bringing the latest state of the art technology to the aftermarket. The GEN4 ECU is designed to drop right in place of the current GEN3 ECU which makes the swap to the newest technology on the market so simple.

Dual Core 32-Bit Processor @ 260MHz (With a core for just running the engine and one running the datalogger its processing power is FAST!)
100Mb Ethernet Port for laptop and expansion module communication (True WiFi!)
400-500 available channels to datalog 500Hz for up to 15 minutes
Built on OEM technology for the most robust software/hardware on the market with strict in house testing before any software is released to not have any “bugs” in the code
Built-in SD card will permanently hold all of your crucial data
On-board barometric pressure sensor and 3-Axis Accelerometer and Gyro (Less expansion modules!)
Multiple 24×24 Fuel Spark and Lambda Tables with tables by gear or time. (More detailed resolution of fuel and timing per gear!)
Multiple purchase options mean you can order the system A la carte for your needs and your choice of Affirm financing
Free firmware updates using the built-in SD card (No more sending the ECU to Bigstuff for updates!)
Built-in Boost Control, NOS Control, and 4L60E/80E Transmission Control (No external controllers!)
Custom Logic Configuration and programming based on any input to control Digital or PWM outputs
Built-in over boost, Fuel Pressure, Oil Pressure, AFR, and EGT Safeties
8-Cylinder AFR Sensors can be read using Big Band expansion modules for a total of 10 O2 sensors to be read
CLOSED LOOP 8-Cylinder AFR Control
External CAN networks for Racepak, EGTs, and Front/Rear Wheel Speed Sensors
OPEN CAN network for any dashes, power management units, or other devices that utilize the .DBC file protocol
Sequential fuel control for up to 32 cylinders with up to 48 total fuel injectors available for use
Easiest and most powerful software to use on the market today with no cost software updates
Individual cylinder fuel and spark control for up to 5 gears
Smart and dumb Coil-on-Plug capable Injector phasing, at the start and end of injection events
Configurable Load & RPM axes
And so much more!
