THE MOST POWERFUL SUPERCHARGER SYSTEM FOR THE 3V MUSTANG
BOLT ON 70-75% MORE POWER

When it comes to forced air power adders for the latest 4.6L 3V Mustangs, ProCharger is the Ultimate Mustang Power Adder. With power, performance and reliability others can only dream of, ProCharger offers several intercooled supercharger solutions for the boost-friendly 3V Mustangs: a High Output (HO) Intercooled System and a Stage II Intercooled System.

OEM APPEARANCE

ProCharger systems for 3V Mustangs feature an awesome “from the factory” look and come with a standard 3-year warranty on the intercooler and 1-year warranty on the supercharger (Optional 3-year supercharger warranty is available). ProCharger systems for 3V Mustangs utilize an advanced hand-held tuner to upload the ProCharger tune.

ProCharger HO System: Boost and Power

540+ HP with 10 psi
600+ HP with higher boost levels
900+ HP with modified engine

  DESCRIPTION   BOOST   HP GAIN   INTERCOOLER
  Intercooled Tuner Kit with P-1SC-1 (2005-06)   specify   specify   2 core
  High Output Intercooled System with P-1SC-1   10 psi   70-75%   3 core
  High Output Intercooled Tuner Kit with P-1SC-1   specify   specify   3 core
  Stage II Intercooled System with P-1SC-1   10 psi   70-75%   3 core
  Stage II Intercooled Tuner Kit with P-1SC-1   specify   specify   3 core

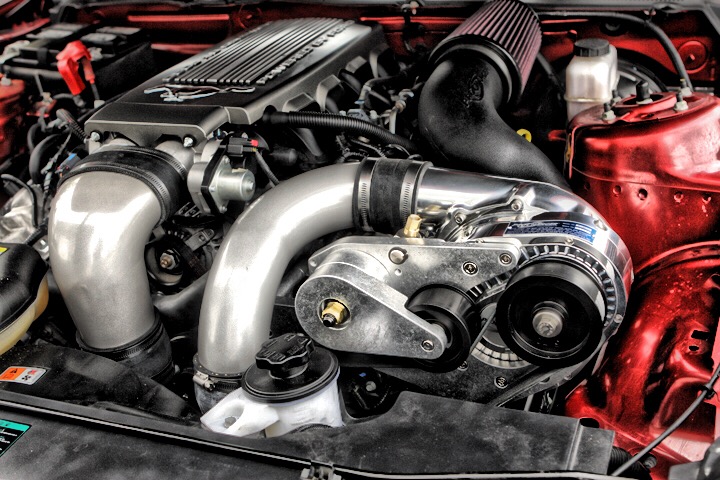

IMG_6494

Purchase ProCharger Kit ONLINE

PROCHARGER HO AND STAGE II SYSTEMS

Both the HO Intercooled and Stage II Intercooled systems for 3V Mustangs utilize the patented, proven and self-contained P-1SC-1 ProCharger, an exclusive dedicated, 8-rib drive supercharger drive system, a highly-effective, 3-core air-to-air intercooler, OEM-quality mounting brackets, eight larger fuel injectors, higher capacity fuel system, tuning and all necessary supercharger and intercooler tubes for installation onto Mustangs with no major modifications to your car or engine. ProCharger Systems are 100% complete and require no additional hardware.

PROCHARGER 4.6L 3V TUNER KITS

In addition to complete systems, ProCharger offers two Intercooled Tuner Kits for the 4.6L 3V Mustangs: an HO Intercooled Tuner Kit and a Stage II Intercooled Tuner Kit. With reliability, quality and power far superior to other forced-air induction systems, a ProCharger Tuner Kit is an excellent way to add even more power to modified and custom tuned 3V Mustangs. Tuner kits require additional components (fuel system upgrade) and custom tuning by a qualified dealer. ProCharger Stage II Intercooled Systems feature larger intercooler tubing for higher airflow and easily allows a future upgrade to an even larger intercooler and supercharger. The Stage II Intercooled System also includes a new radiator overflow tank, fan shroud and fan assembly.

Building a modified or stroked 3V engine for your Mustang? An intercooled ProCharger supports the highest boost and power levels in the industry. Give ProCharger or your local dealer a call to learn more.

ProCharger 4.6L 3V Systems and Tuner Kits

  • 2005-2010: HO Intercooled System and Tuner Kit (dedicated 8-rib drive)
  • 2005-2010: Stage II Intercooled System and Tuner Kit (dedicated 8-rib drive)

ProCharger 4.6L 3V Choices & Upgrades

  • Polished supercharger finish
  • ProCharger D-1SC supercharger upgrade
  • Helical Gear set for Noise Reduction (P-1SC-1 & D-1SC only)
  • 800+ HP Air-to-Air Intercooler System Upgrade

Purchase ProCharger Kit ONLINE

Race Systems

  DESCRIPTION   BOOST   HP GAIN   INTERCOOLER
  Intercooled Serpentine Race Kit (12 rib) with F-1A   specify   specify   800+ hp
  DESCRIPTION   BOOST   HP GAIN   INTERCOOLER
  Intercooled Cog Race Kit with F-1 or F-1A   specify   specify   800+ hp
  Cog Race Kit with F-1 or F-1A   specify   specify   –

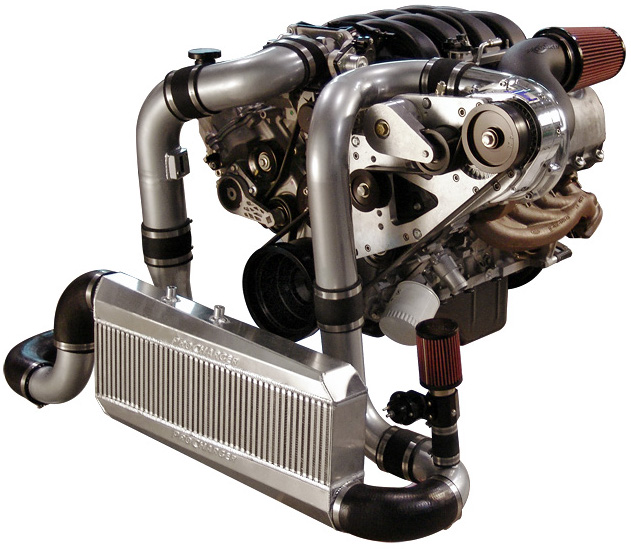

2005_2010_mustang_gt_4_6_3v_racekit_0

THE 11 SECOND BOLT ON

Both of these intercooled ProCharger systems produce an industry-leading 70 – 75% power gain on otherwise stock engines running high quality pump gas with 10 psi of intercooled boost. That’s enough additional power to propel your otherwise stock Mustang to 11 second 1/4-mile passes.

PROCHARGER INTERCOOLED SERPENTINE RACE KIT

The Intercooled Serpentine Race Kit for 3V Mustangs utilize the patented, proven F-1A ProCharger, an exclusive dedicated, 12-rib drive supercharger drive system, a highly-effective, custom 800+ HP air-to-air intercooler, OEM-quality mounting brackets, eight larger fuel injectors, higher capacity fuel system, tuning and all necessary supercharger and intercooler tubes for installation onto Mustangs with no major modifications to your car or engine. ProCharger Systems are 100% complete and require no additional hardware.

PROCHARGER MUSTANG STOCK-STYLE EFI RACE KITS

  • 2005-2010: 3V Intercooled 12 Rib Serpentine Drive Race Kit with F-1A
  • 2005-2010: 3V Intercooled Cog Race Kit with F-1A

PROCHARGER 4.6L 3V CHOICES & UPGRADES

  • Polished supercharger finish
  • ProCharger D-1SC supercharger upgrade
  • Helical Gearset for Noise Reduction (P-1SC-1 & D-1SC only)
  • 800+ HP Air-to-Air Intercooler System Upgrade

For Race & Cog systems, please CALL us for special order!

View ProCharger Supercharger Specs Table

Want more power? Contact us for upgrade options!
